This web page will be for nothing but spectra of green non-DPSS lasers.
Ocean Optics USB2000 Spectrometer donated by P.L.
As of 10-10-07, I've been using a PC2000-ISA Spectrometer from Ocean Optics that I received several years ago, but that I didn't have a home for until now.
As of 03-08-08, I once again have the USB2000 spectrometer, enabling color spectra again.
As of 09-19-09, I no longer have the PC2000-ISA; it was sold to prevent an eviction.
SPECTRA OF DIRECTLY-INJECTED GREEN (510nm to 520nm) LASERS (or, "LAZERS" if you prefer to be incorrect):
Spectrographic analysis of this laser after several hours of lasing.
Spectrographic analysis of this laser after several hours of lasing; spectrometer's response narrowed to a band between 500nm and 512nm to pinpoint wavelength, which is 505.410nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at 505poin3.txt
Spectrographic analysis of the Directly-Injected 5mW 505nm Bluish-Green Laser Pen taken after ~three (3) hours of continuous operation to check for spectral drift; spectrometer's response narrowed to a band between 500nm and 520nm to pinpoint wavelength, which is 505.410nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at 505poin2.txt
Spectrographic analysis of the Directly-Injected 5mW 505nm Bluish-Green Laser Pen.
Spectrographic analysis of the Directly-Injected 5mW 505nm Bluish-Green Laser Pen; spectrometer's response narrowed to a band between 500nm and 520nm to pinpoint wavelength, which is 507.150nm.
Spectrographic analysis of the Directly-Injected 5mW 505nm Bluish-Green Laser Pen; spectrometer's response narrowed to a band between 800nm and 874nm to check for the presence of a pump laser (why bother when I know that a longer wavelength pump laser does not exist?) -- as you can plainly see, it really, truly doesn't exist!!! (I irradiated the spectrometer's sensor quite well in effort to capture this!)
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at 505point.txt
Spectrographic analysis of the Skytech 520nm Green Portable Laser right below lasing threshold.
Spectrographic analysis of the Skytech 520nm Green Portable Laser right below lasing threshold; spectrometer's response narrowed to a range between 505nm and 525nm to pinpoint wavelength, which is 516.150nm.
The raw spectrometer data (comma-delimited that can be loaded into Excel) is at sky520lb.txt
Spectrographic analysis of the Skytech 520nm Green Portable Laser (single cell).

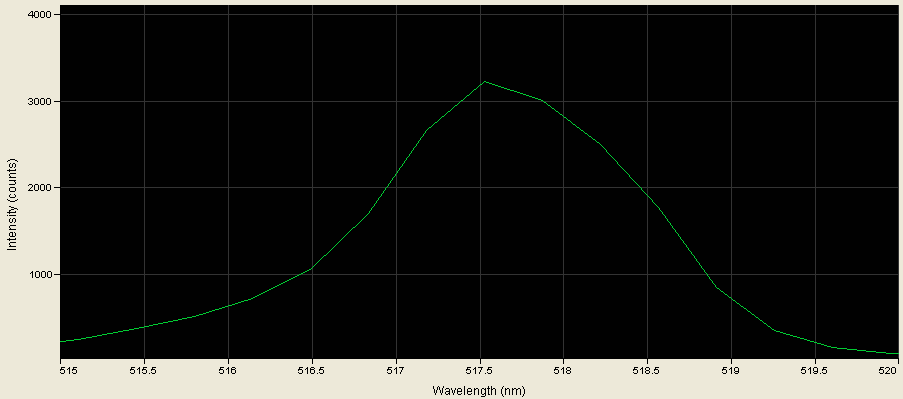

Spectrographic analysis of the Skytech 520nm Green Portable Laser (single cell); spectrometer's response narrowed to a range between 515nm and 520nm to pinpoint wavelength, which is 517.530nm.
The raw spectrometer data (comma-delimited that can be loaded into Excel) is at sky520-l.txt
Spectrographic analysis of the Skytech 520nm Green Portable Laser (two cells).
Spectrographic analysis of the Skytech 520nm Green Portable Laser (two cells); spectrometer's response narrowed to a range between 517nm and 523nm to pinpoint wavelength, which is 519.950nm.
The raw spectrometer data (comma-delimited that can be loaded into Excel) is at sky520-h.txt
Spectrographic analysis of the Directly-Injected 5mW 515nm Green Laser; newest (11-09-15) spectrometer software used.
Spectrographic analysis of the Directly-Injected 5mW 515nm Green Laser; newest (11-09-15) spectrometer software used. Spectrometer's response narrowed to a band between 515nm and 525nm to pinpoint wavelength, which is 518.57nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at dg2.txt
Spectrographic analysis of the Directly-Injected 5mW 515nm Green Laser below lasing threshold newest (11-09-15) spectrometer software used.
Spectrographic analysis of the Directly-Injected 5mW 515nm Green Laser below lasing threshold; newest (11-09-15) spectrometer software used. Spectrometer's response narrowed to a band between 525nm and 535nm to pinpoint wavelength, which is 531.660nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at dgbt2.txt

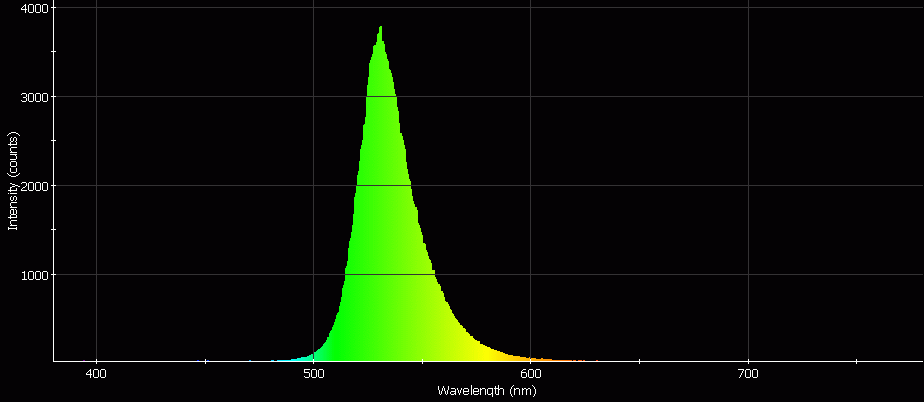

Spectrographic analysis of the Directly-Injected 5mW 515nm Green Laser when it is "off".

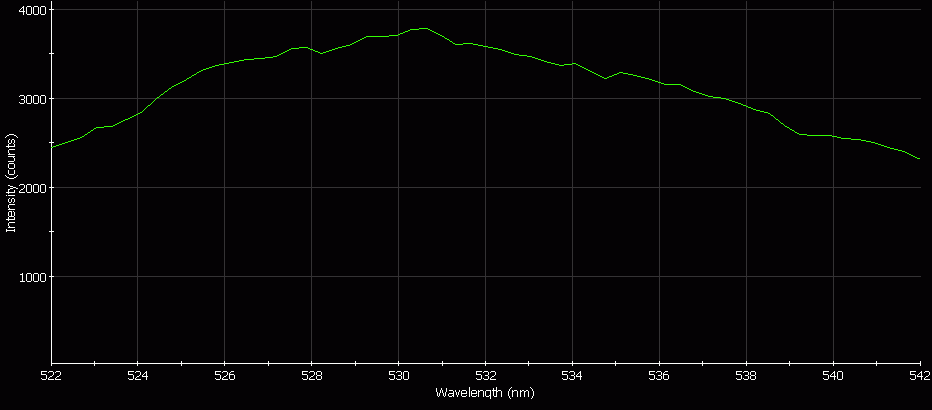

Spectrographic analysis of the Directly-Injected 5mW 515nm Green Laser when it is "off"; spectrometer's response narrowed to a band between 522nm and 542nm to pinpoint wavelength, which is 530.290nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at of515poi.txt

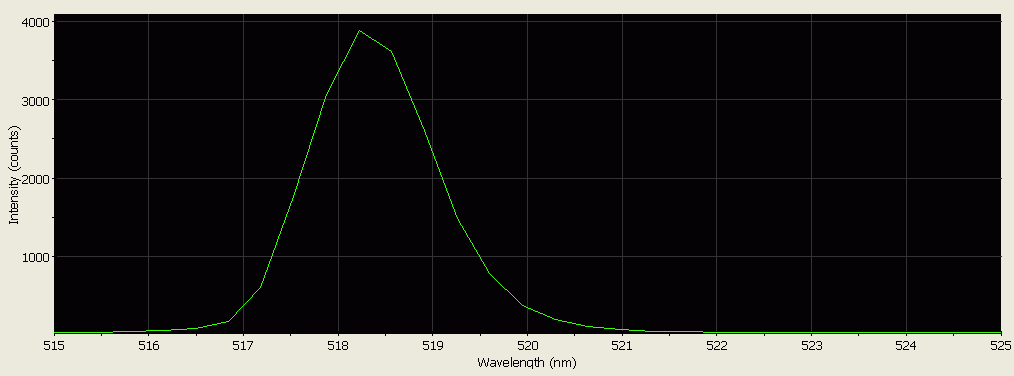

Spectrographic analysis of the Directly-Injected 5mW 515nm Green Laser> Pen after burning two sets of batteries through it; spectrometer's response narrowed to a band between 515nm and 525nm to pinpoint wavelength, which is 518.220nm.
Spectral line halfwidth (FWHM) analysis (using the data that's available directly below) shows that the FWHM is 1.380nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at 515poin2.txt
Spectrographic analysis of the Directly-Injected 5mW 515nm Green Laser Pen below lasing threshold.

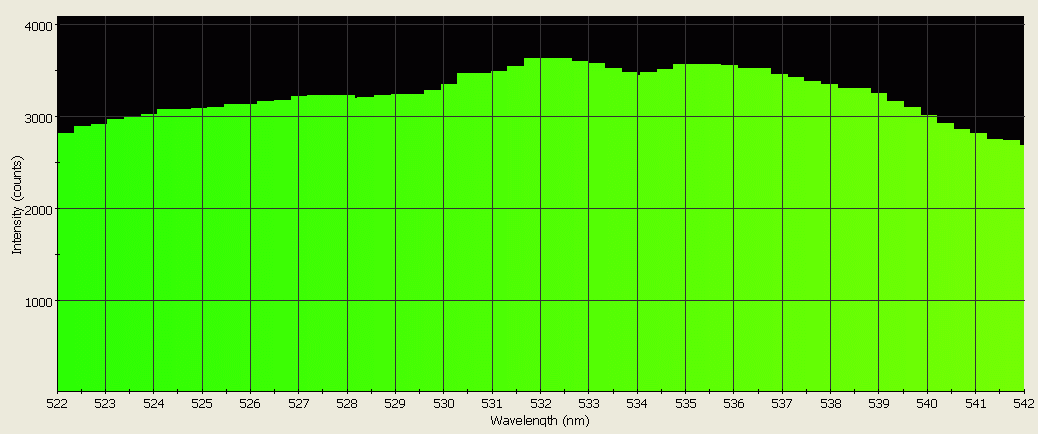

Spectrographic analysis of the Directly-Injected 5mW 515nm Green Laser Pen below lasing threshold; spectrometer's response narrowed to a band between 522nm and 542nm to pinpoint wavelength, which is 531.660nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at bt515poi.txt

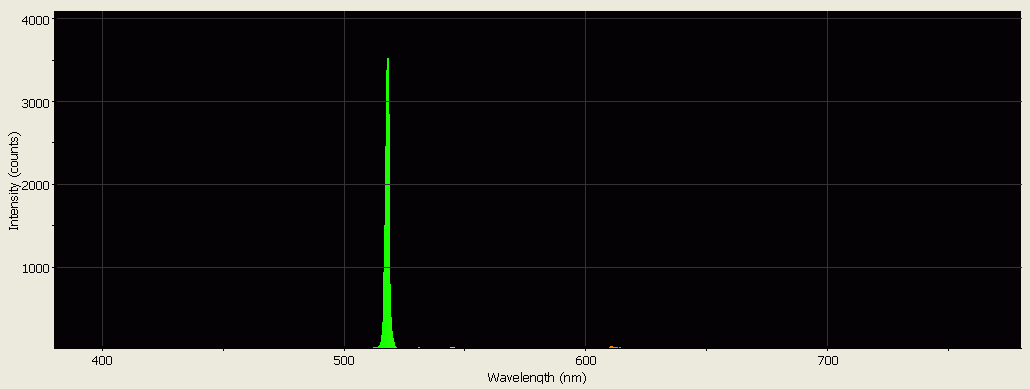

Spectrographic analysis of the Directly-Injected 5mW 515nm Green Laser Pen.

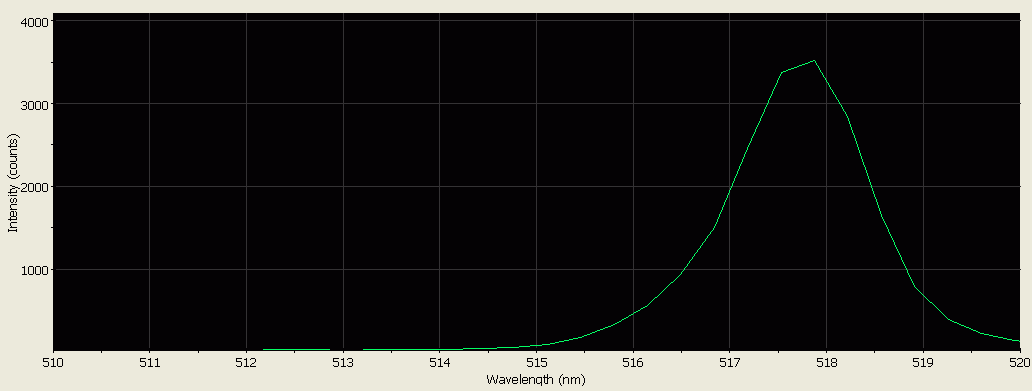

Spectrographic analysis of the Directly-Injected 5mW 515nm Green Laser Pen; spectrometer's response narrowed to a band between 510nm and 520nm to pinpoint wavelength, which is 517.880nm.

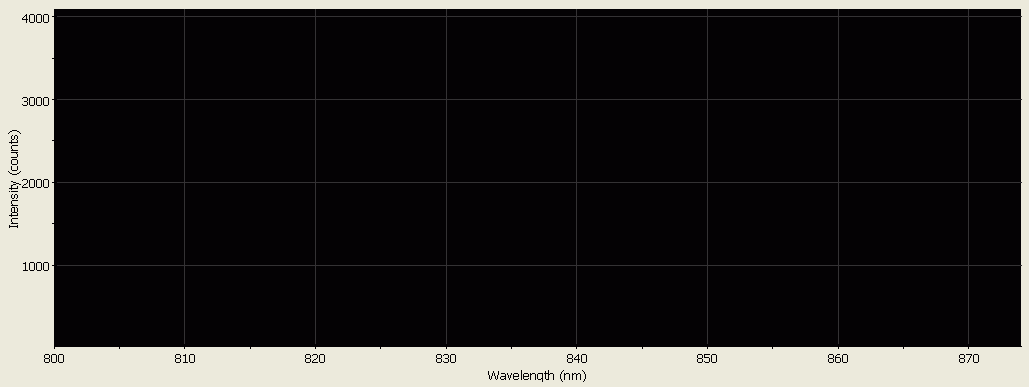

Spectrographic analysis of the Directly-Injected 5mW 515nm Green Laser Pen; spectrometer's response narrowed to a band between 800nm and 874nm to check for the presence of a pump laser -- which none exists (I irradiated the spectrometer's sensor quite well in effort to capture this!)
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at 515point.txt
Spectrographic analysis of the Directly-Injected 515nm Green Diode Laser Module; spectrometer's response narrowed to a band between 800nm and 874nm to check for the presence of a pump laser -- which none exists (I irradiated the spectrometer's sensor quite well in effort to capture this!)
Spectrographic analysis of the Directly-Injected 515nm Green Diode Laser Module.
Spectrographic analysis of the Directly-Injected 515nm Green Diode Laser Module; spectrometer's response narrowed to a range between 510nm and 520nm to pinpoint wavelength, which is 513.380nm.
The raw spectrometer data (tab-delimited that can be loaded into Excel) is at 515green.txt
