1x LED 1x AA CELL TORCH

1x LED 1x AA Cell Torch, retail $2.00
Manufactured by ()
Last updated 05-19-19

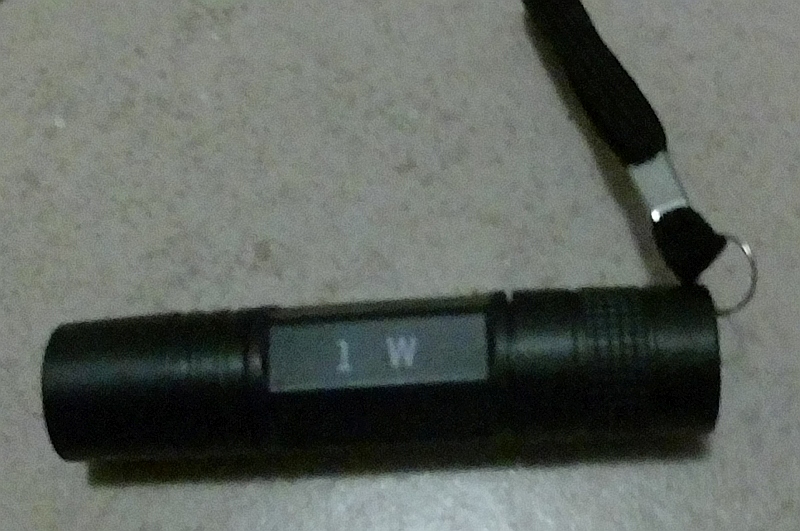

The 1x LED 1x AA Cell Torch is a fairly small flashlight that feeds from a single AA cell, and features a mid-power phosphor white LED at the bottom of a mirror-smooth reflector.

It comes in a plastic body, and actually appears to be quite durable.

The reflector & LED are protected by a surprisinly beefy plastic window (many of you would call it a 'lens' but it does not focus or modify the emitted light in any significant manner).

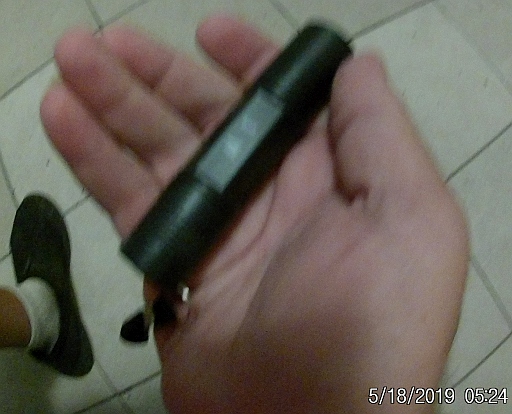

Size of product w/hand to show scale

SIZE

Using the 1x LED 1x AA Cell Torch is simple and intuitive enough; just press the tailcap button fairly firmly until it clicks (the button provides tactile and auditory feedback here so there's little chance for error) and then release it.

To neutralise the flashight, just press & release the tailcap button just like you did when turning the light on.

To change the AA cell in your spiffy new (or corroded old

) 1x LED 1x AA Cell Torch, unscrew & remove the tailcap, and set it aside.

Dump the dead, dead AA cell into the dustbin (garbage can), and insert a new AA cell into the flashlight's body, orienting the AA cell so that the (+) positive (nipple-end) goes in first.

Screw the tailcap back on, and be done with it.

The 1x LED 1x AA Cell Torch isn't the toughest light on the block, but it was also only $2.
That now out of the way, let's try The Smack Test on it...BBS...after 25 hard smacks (10 on a concrete driveway -- 5 to the tailcap & 5 to the bezel; and against the corner of a brick planter -- 5 on the tailcap again and 10 on the center of the body), the expected damage was found. There is some gouging on the bezel and tailcap where it was struck, and a surprisingly minor amount of scuffing on the barrel where it was struck. But no optical or electrical malfunctions were detected.

The primary purpose of this test is not necessarily to see if the exterior of the flashlight would be damaged; it's more about the internal components which would be subject to a high shock load ("G force") every time it strikes the concrete.

Next, I removed the tailcap and suctioned the barrel. It held a good partial vaccum, so I deemed it fit for, "The Toliet Test" in which I drop it into the cistern (toliet tank) and left it there for at least one minute. This simulates somebody dropping it into a creek, pond/lake shoreline, etc. and then fishing it out of the water. The 1x LED 1x AA Cell Torch passed this test quite handily -- when the flashlight was retrieved from the cistern, I dried the outside with a little poliet taper and then dissembled it and surprise surprise surprise NOT! No water was found inside.

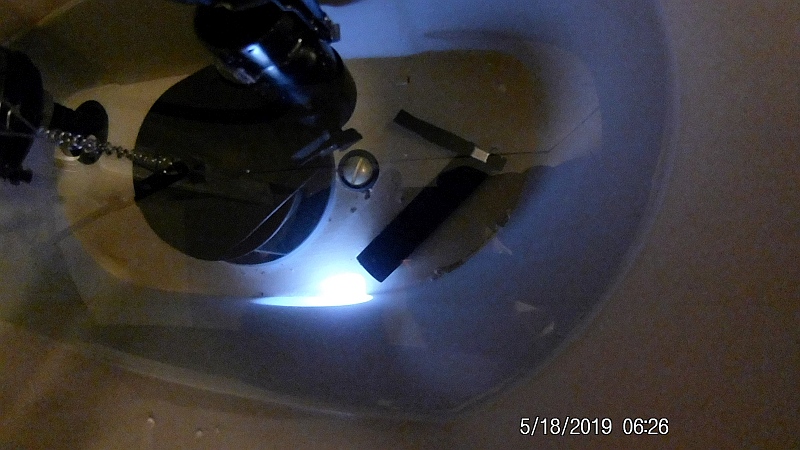

This is photographic proof that I really did perform, "The Toliet Test" on it.

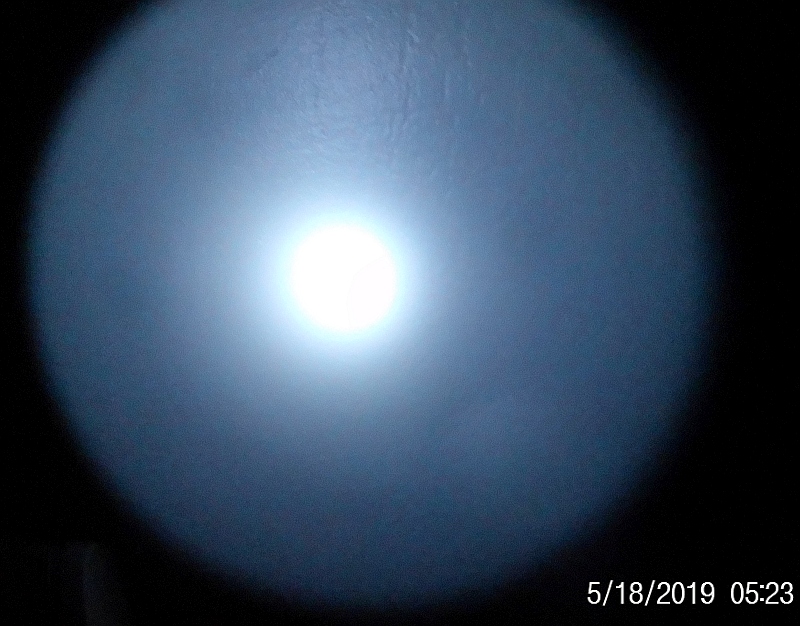

Beam terminus photograph on a wall at 12".
My Amprobe LM631A light meter is still up in Washington state; so no intensity measurement yet.
Just by "eyeballing" it however, I'd estimate its intensity at >100,000mcd at beam center.

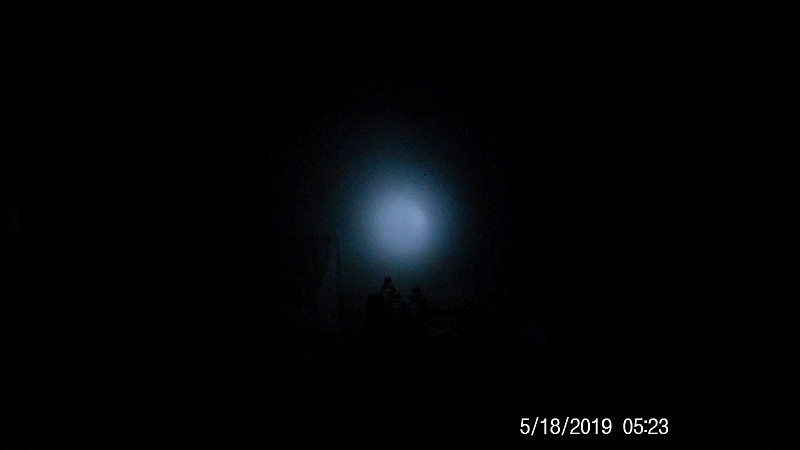

Beam terminus photograph on a wall at ~8 feet.

Spectrographic analysis of the LED in this flashlight.

Spectrographic analysis of the LED in this flashlight; spectrometer's response narrowed to a band between 440nm and 460nm to pinpoint native emission peak wavelength, which is 450.47nm.

The raw spectrometer data (tab-delimited that can be loaded into Excel) is at 1w1aa.txt

USB2000 Spectrometer graciously donated by P.L.

A beam cross-sectional analysis would normally appear here, but the ProMetric System
that I use for that test was destroyed by lightning in mid-July 2013.

TEST NOTES:
Test unit was purchased at the Happy Market, located at 4605 E. Shields Ave. in Fresno CA. USA on the evening of 05-17-19.

UPDATE: 00-00-00

PROS:
Fairly decent intensity for a single LED single cell flashlight
Uses batteries that are common and easily available
Appears at least reasonably durable
Water-resistant and even submersible to shallow depths at minimum

NEUTRAL:
Minimal amout of metal in its construction

CONS:
Small hotspot that many users may dislike

Unknown/not stated

Single cell single-LED mini torch

Medium-power phosphor white LED

Wide spot w/ wider corona

Smooth finish

Reverse clickie on/off/momentary on tailcap

Plastic with a metal sleeve inside the barrel

LED at the bottom of a mirror-smooth reflector, protected by plastic window

1x AA cell

Unknown/TBA

Sprinkle/splash-resistant at absolute minimum

Yes, for brief periods at minimum

TBA

China

Unknown/not stated

1x LED 1x AA Cell Torch *
