BEAM N READŽ 6 LED DELUXE READING LIGHT
This is a long page with at least 22 images on it; dial-up users please allow for plenty of load time.
You have no chance to survive make your time.



Beam N ReadŽ 6-LED Handsfree Deluxe Reading Light, retail $29.95 (www.readinglight.com...)
Manufactured by ASF Lightware Solutions (www.readinglight.com)
Last updated 07-07-14







The Beam N ReadŽ 6-LED Handsfree Deluxe Reading Light is a reading light that features six wide-angle white LEDs in a rectangular illuminator head.

However, it doesn't clip to a book. And you don't wear it on your head. Rather, it dangles from your neck via an elastic (stretchy) strap -- and it directs a soft flood of light on the book or other close-range task where it belongs, rather than in your bed partner's eyes when they say something and you turn to look at them!

It's also handy for skulking around the house at 3:30am without stepping on little squeaky rat tails {or loud cat tails!}, changing a baby's poopy diapers at night without having to flip on the overhead lights and risk waking other children in the room {
but if you're awakened by a squalling baby at 2am because his or her nappy is wet, chances are that the racket has also awakened other kids in the same room anyway, hahaha!!!}, shovelling up dog {vulgar slang term for multiple fudge bunnies} after taking Fido or Fi-Fi out for a midnight crap, etc.

One thing that this light has that others don't is a set of clip-on filters specifically designed to block blue radiation that can wreak havok on your sleep! The orange filter completely blocks wavelengths shorter (bluer) than 550nm while still maintaining good intensity, and the red filter not only blocks blue wavelengths, but only allows wavelengths greater than approx. 570nm yet still provides enough broadband emission that red text on white paper is still easily readable.


 SIZE



The Beam N ReadŽ 6-LED Handsfree Deluxe Reading Light is almost ready to use right out of the package; you only need install a quartet of AA cells (not included; see directly below) and then you can go & find what made that squeaky noise behind the toliet or curl up with your favourite book on that new E-Reader that you just got for your birthday.

Using the elastic cord, sling the Beam N ReadŽ around your neck, as the photograph directly below shows:

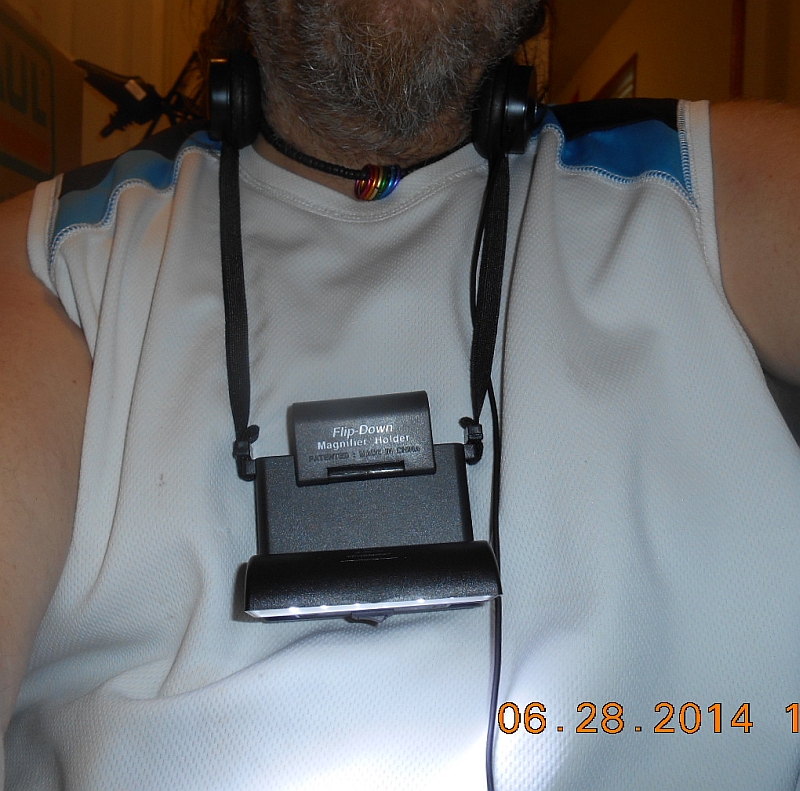

Picture of the Beam N ReadŽ 6-LED Handsfree Deluxe Reading Light slung arond my neck like it was intended to be used.
That thin cord that you see belongs to my earphones, which are connected to my AppleŽ Ipod Shuffle in my pants pocket.

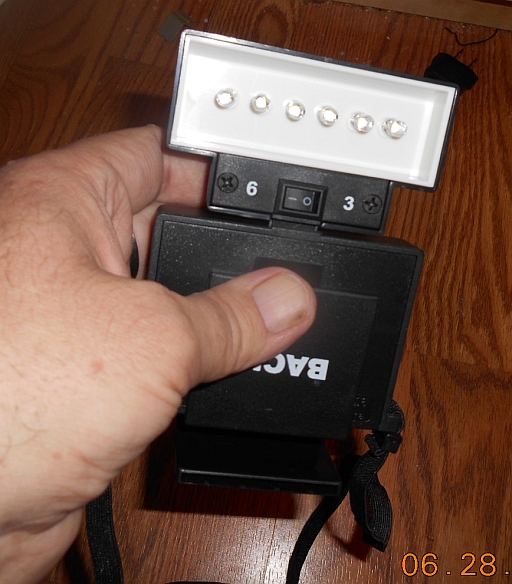

Turn your Beam N ReadŽ on by simply swivelling the illuminator head.

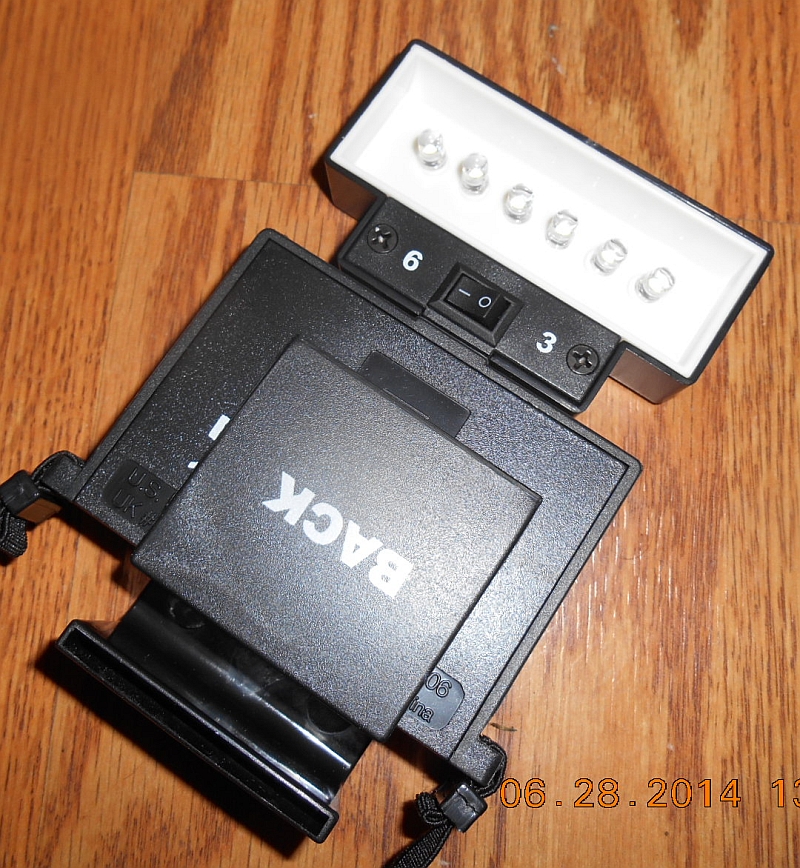

There is a toggle switch on it that allows you to select three LEDs or all six LEDs for maximum intensity.

To neutralise it (turn it off), swivel the illuminator head back to its original flat position.

To use either of the blue-blocking filters, simply snap them in place over the illuminator head.

To use the 4X Fresnel magnifier lens, first, affix the magnifier clip-on holder to your Beam N ReadŽ, and insert the Fresnel lens itself into the holder by aligning one of the tabs on it with the slot for it on the lens holder. You may then pivot the lens to suit the task at hand (the lens holder has a pivot/swivel built in).

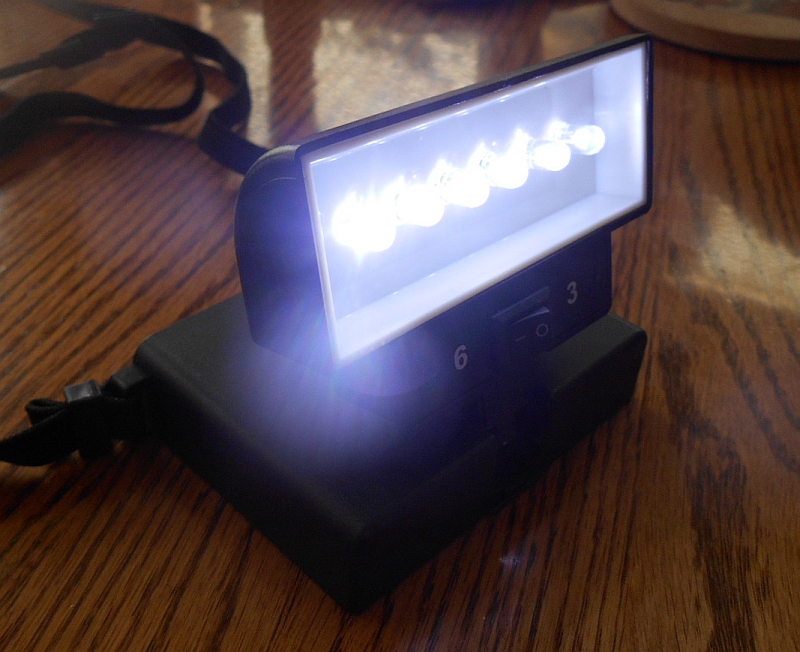

The Beam N ReadŽ can also be placed upon a flat surface such as the floor in order to help you locate dropped objects under a couch or chair; the low-angle causes the lost item to cast a noticeable shadow that may allow you to spot it more readily.
A prime example of this might be when you drop a tiny screw or a sewing needle on the floor and it rolls under the couch.

Unlike other reading lights, the Beam N ReadŽ can be used with an AC adapter, so you don't have to worry about batteries at all. Save those suckers for when there's a power failure or a tripped circuit breaker in the basement.

The AC adapter (which can be ordered on the Beam N ReadŽ's website at this URL for $13.45) has an output of +4.8 volts at 500mA.

To use the AC adapter, plug the large end into any standard (in north America anyway) 110 volts to 130 volts AC 60Hz wall receptacle (or, "wall outlet" or even, "wall socket" if you prefer), and plug the small plug on the end of its thin cord into the small circular receptacle for it on the bottom of the Beam N ReadŽ.
This wonderful little light will now be powered from mains voltage; saving its batteries! (the batteries in the unit are automatically disconnected, so you need not remove them).



To change the batteries in your Beam N ReadŽ, remove the lens clip if it is attached, turn the unit so it is face-down, slide the battery door off in the direction of the arrow embossed on it, buy yourself an airline ticket and fly yourself plus the battery door to Hollywood (put it in checked baggage if necessary), bring it to the set of the new movie, "Halloween V: Season of the Bitch", have the special effects crew grind it into microscopic bits to have those itty bitty bits implanted into millions of Kotex and Tampax tampons, and...
O WAIT!!! YOU'LL NEED THAT!!! So save your airfare & just set it aside instead.

Remove the four dead, dead AA cells, and dispose of or recycle them as you see fit.
Do not use your foot to push them under the Lazy-Boy where the dog might find them, do not attempt to flush them down the loo, and for God sakes please do not throw them over the side of a dock where they might hit a flounder on the way down to the sea bottom.

Insert four new AA cells, orienting each of them so that their flat-ends (-) negatives face the springs for them in each chamber.

Finally, slide the battery door back on, and start reading again!

Aren't you glad that you didn't fly that battery door to Hollywood where it would get ground into microscopic bits for the sake of some phoney-bologna fake Halloween movie now?



This is a reading light, not a flashlight meant to be thrashed, trashed, and abused. So I won't try to drown it in the toliet tank, bash it against a steel rod or against the concrete floor of a carport in effort to try and expose the bare Metalguilmon - er - the bare Metalguardramon - um that's not it either...the bare Metalterriermon...mmm...the bare Metalkyubimon...er...uh...wait a sec here...THE BARE METAL (guess I've been watching too much Digimon again! - now I'm just making {vulgar slang term for feces} up!!!)...O WAIT!!! WHERE'S THE METAL?!?, let my mother's big dog's ghost, her kitties, my kitty or my sister's kitty cat piddle (uranate) on it, hose it down with my mother's gun, run over it with a 450lb Quickie Pulse 6 motorised wheelchair, stomp on it, use a medium ball peen hammer in order to bash it open to check it for candiosity, fire it from the cannoņata, drop it down the top of Mt. Erupto (now I guess I've been watching the TV program "Viva Piņata" too much again - candiosity is usually checked with a laser-type device on a platform with a large readout (located at Piņata Central {aka. "Party Central"}), with a handheld wand that Langston Lickatoad uses, or with a pack-of-cards-sized device that Fergy Fudgehog uses; the cannoņata (also located at Piņata Central) is only used to shoot piņatas to piņata parties away from picturesque Piņata Island, and Mt. Erupto is an active volcano on Piņata Island), send it to the Daystrom Institute for additional analyses, or perform other indecencies on it that a flashlight might have to have performed on it. Therefore, this section of the Beam N ReadŽ 6-LED Handsfree Deluxe Reading Light's web page will seem a bit more bare than this section of the web page on a page about a flashlight that was born to be a flashlight and nothing but a flashlight.

From the manufacturer, comes the following {no changes to grammar, spelling, or syntax were made}:

Viewing our lights in the context of the right tool for the right job, we feel we complement rather than compete with handheld flashlights and headlamps. Beam N ReadŽ fills the gap for personal task lighting in near space by providing a wide and bright hands-free light that is not too bright or wide, not too dim or narrow, but just right. It provides an excellent balance between brightness and battery life.

Most other lights spend most days stored away waiting for the occasional need they are designed for. Beam N ReadŽ lights, on the other hand, are used daily by many people whether for reading, quilting, jumping a vehicle at night, changing an infants diapers, taking a trip downstairs at night, on poop patrol while walking a dog, rummaging through the basement or attic, or looking for a lost item under a bed or sofa. In daylight when looking for a dropped tiny screw, I've found it useful to place the light on the floor so a small shadow appears behind the tiny object making it a little easier to find.

Most portable, personal lights shine a circular beam with a hard shadow around the central beam. You test targets show this. For near field tasks this change in intensity can make the eyes work harder. Beam N ReadŽ lights shine a horizontal oval beam that gradually diminishes away from the central area which is easier on the eyes. Our goal is to provide comfortable near field task lighting rather than focused beams that can light up objects a distance away.

Beam N ReadŽ lights are turned on/off by flipping the large reflector head up/down. This makes it easy to operate for those who have trouble with small buttons or switches.

Like some other lights you have reviewed, Beam N ReadŽ is not designed for abuse. I have, however, dropped mine many times. The battery cover flies off, batteries come out, and you put it back together and it still works. I performed the ANSI/NEMA FL-1 drop test at one meter dropping a Beam N ReadŽ 6 times (once from each side) onto concrete. There were no cracks and the light worked fine. Again, it's not designed for abuse but should handle typical tumbles that occur in everyday life.

If you read in bed at night, do try the orange filter for a few days and then switch to no filter. You may be surprised how the unfiltered light feels. Then try the red filter for a few days and switch back to no filter. It may be interesting to see a set of spectrographic charts comparing the Beam N ReadŽ with no filter, with the orange filter, and with the red filter and the filters impact on reducing blue light. I assume you're familiar with the issues of blue light, but if not just Google "blue light and sleep" and you'll find lots of information.

Take note of the ambient light levels for no filter, the orange filter, and the red filter. When used for tasks in bed at night such as reading or knitting, the red filter really makes a difference in how much light is bouncing around the room. For many people, having a bed partner use an unfiltered Beam N ReadŽ enables them to sleep undisturbed. But for those more sensitive to ambient light the orange or red filter may make a big difference. Most other lights don't seem to concern themselves with this day-to-day use issue.



Picture of the Beam N ReadŽ 6-LED Handsfree Deluxe Reading Light illuminating the pages of the book, "Planet LED (A Coffee Table Book)" with no filter in place.



Picture of the Beam N ReadŽ 6-LED Handsfree Deluxe Reading Light illuminating the pages of the book, "Planet LED (A Coffee Table Book)" with orange filter in place.



Picture of the Beam N ReadŽ 6-LED Handsfree Deluxe Reading Light illuminating the pages of the book, "Planet LED (A Coffee Table Book)" with the red filter in place.



Picture of the Beam N ReadŽ 6-LED Handsfree Deluxe Reading Light illuminating the pages of the book, "Planet LED (A Coffee Table Book)" with the 4X Fresnel magnifying lens in place.


Spectrographic analysis
Spectrographic analysis of the LEDs in this reading light (no filter).


Spectrographic analysis

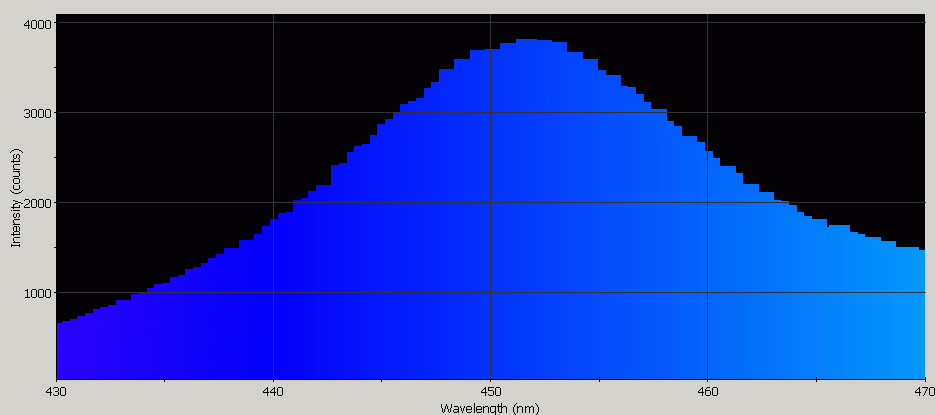

Spectrographic analysis of the LEDs in this reading light (no filter); spectrometer's response narrowed to a band between 430nm and 470nm to pinpoint native emission peak wavelength, which is 451.880nm.

The raw spectrometer data (comma-delimited that can be loaded into Excel) is at /47///bnr6-n.txt


Spectrographic analysis

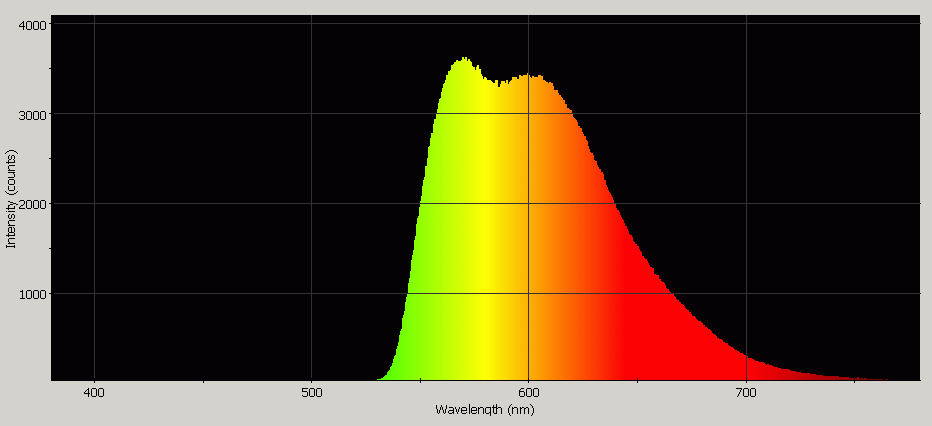

Spectrographic analysis of the LEDs in this reading light (orange filter).


Spectrographic analysis

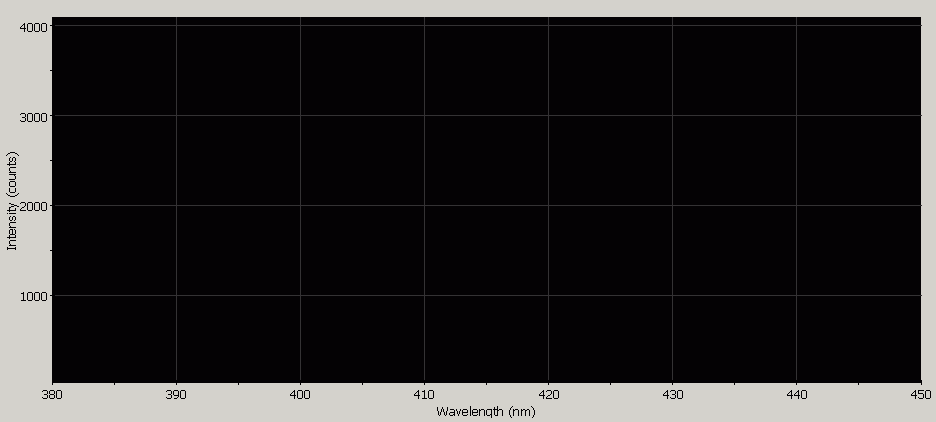

Spectrographic analysis of the LEDs in this reading light (orange filter); spectrometer's response narrowed to a band between 380nm and 450nm to pinpoint native emission peak wavelength, which is not detectable -- the filter attenuates all of the blue radiation.

The raw spectrometer data (comma-delimited that can be loaded into Excel) is at /47///bnr6-o.txt


Spectrographic analysis
Spectrographic analysis of the LEDs in this reading light (red filter).


Spectrographic analysis
Spectrographic analysis of the LEDs in this reading light (red filter); spectrometer's response narrowed to a band between 420nm and 450nm to pinpoint native emission peak wavelength, which is 450.820nm (but was very nearly undetectable).

The raw spectrometer data (comma-delimited that can be loaded into Excel) is at /47///bnr6-r.txt

USB2000 Spectrometer graciously donated by P.L.




TEST NOTES:
Test unit (along with their 3-LED version) was sent by B.F. of ASF Lightware Solutions on 06-26-14, and was received on the early-afternoon of 06-28-14.


UPDATE: 00-00-00



PROS:
Very unique design hangs from your neck rather than going 'round your head or being clipped to a book
Red and orange filters are truly useful!
Comes with a handy 4x Fresnel magnifier
Long battery life
Batteries it needs are common and relatively inexpen$ive


NEUTRAL:
I kind of wish that the illuminator head had a bit more range of motion -- however, this is a subjective opinion that will not affect rating
Not waterproof -- but it wasn't meant to be; so again this will not affect rating


CONS:
None that I've yet to find


    MANUFACTURER: ASF Lightware Solutions
    PRODUCT TYPE: Hang-around-neck reading/task light
    LAMP TYPE: White LED
    No. OF LAMPS: 6 wide-angle T1ž (5mm) LEDs
    BEAM TYPE: Medium spot; ovoid hotspot with wider corona
    SWITCH TYPE: Flip illuminator head on/off; rocker switch for selecting illumination level
    CASE MATERIAL: Plastic
    BEZEL: Plastic
    BATTERY: 4x AA cells
    CURRENT CONSUMPTION: Unknown/unable to measure
    WATER- AND URANATION-RESISTANT: Very light splatter-resistance at maximum
    SUBMERSIBLE: SNIETY MIKOLAJ ZA POMOCA SZCZOTECZKI DO ZEBĶW, KTĶRY SPADL W TOALECIE, NIE!
    ACCESSORIES: Red filter, orange filter, 4X Fresnel magnifying lens, swivelling lens clip, elastic strap
    SIZE: 116mm L x 83mm W x 18.50mm D (not incl. apex of rocker switch)
    WEIGHT: 197.70g (6.970 oz.) incl. batteries and lens clip
    COUNTRY OF MANUFACTURE: China
    WARRANTY: 90 days

    PRODUCT RATING:

    Star Rating
    (No, you aren't seeing things -- that really is seven stars you're seeing up there!
    This {plus the Beam N ReadŽ 3x LED Handsfree Travel Reading Light} is the best product to have landed in my lab in the last {more than} 14Ŋ years!!!)
